How Are Neodymium Magnets Made?

By Valoom Jobmaster

March 12, 2026 3 min read

Neodymium magnets are the strongest permanent magnets available today. Used across industries including manufacturing, electronics, automotive, renewable energy and engineering, these powerful magnets are made using advanced materials and precision manufacturing processes.

But how exactly are neodymium magnets made? The process combines rare earth elements, metallurgical techniques and precision engineering to create magnets with extremely high magnetic strength.

What Are Neodymium Magnets Made From?

Neodymium magnets are made from an alloy primarily consisting of:

Neodymium (Nd) - a rare earth element responsible for strong magnetic properties
Iron (Fe) - enhances magnetic performance
Boron (B) - stabilises the crystal structure

This alloy is known as NdFeB (Neodymium-Iron-Boron) and forms the basis of modern rare-earth magnets.

Additional elements such as dysprosium or praseodymium may also be added to improve heat resistance and performance in demanding environments.

Step 1: Raw Material Preparation

The manufacturing process begins with carefully measured quantities of neodymium, iron and boron. These raw materials are melted together in a vacuum induction furnace to create a uniform alloy.

Once melted, the molten metal is cooled and solidified into ingots or thin strips. This ensures the correct chemical composition before further processing.

Step 2: Crushing and Milling

The alloy is then broken down into extremely fine powder using specialised crushing and milling equipment.

This powder must be very fine because the magnetic properties of neodymium magnets depend heavily on the alignment of microscopic crystal grains.

The resulting powder is handled in controlled environments to prevent contamination and oxidation.

Step 3: Pressing the Magnet Shape

The powdered material is placed into moulds and compressed under extremely high pressure to form the desired magnet shape.

During this stage, a strong external magnetic field is applied, which aligns the microscopic magnetic domains in the same direction. This alignment is what gives neodymium magnets their exceptional strength.

Common shapes produced at this stage include:

Discs
Blocks
Rings
Cylinders

Step 4: Sintering

After pressing, the magnets are heated in a high-temperature furnace through a process known as sintering.

Sintering bonds the powdered particles together without fully melting them, creating a solid and extremely dense magnet. This step greatly improves the magnet's structural strength and magnetic performance.

Step 5: Precision Machining

Sintered magnets are extremely hard and brittle, so they are carefully machined using diamond tools to achieve precise dimensions.

At this stage, magnets may be cut, drilled, ground or shaped to meet specific design requirements.

Because neodymium magnets are brittle, this machining process must be performed carefully to prevent cracking or chipping.

Step 6: Protective Coating

Neodymium magnets are prone to corrosion if left unprotected. To prevent this, they are coated with protective layers such as:

Nickel (Ni-Cu-Ni coating) – the most common finish
Zinc
Epoxy
Gold or other specialised coatings

These coatings protect the magnet from moisture, corrosion and environmental damage. They also improve the durability and lifespan of the magnet when used in demanding industrial or outdoor environments.

Step 7: Magnetisation

Interestingly, neodymium magnets are not fully magnetic until the final step.

The finished magnets are placed inside a powerful magnetising coil that generates an intense magnetic field. This aligns the internal magnetic domains permanently, activating the magnet's full magnetic strength.

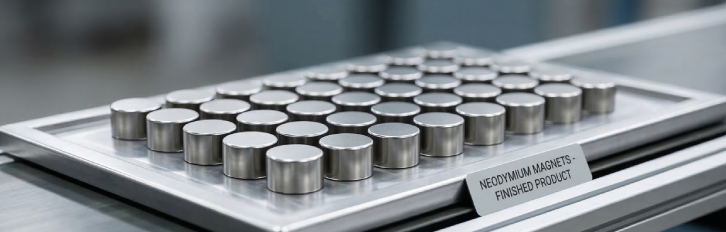

Once magnetised, the magnets are ready for industrial or commercial use.

Why Neodymium Magnets Are So Powerful

Neodymium magnets are significantly stronger than traditional ferrite or ceramic magnets because of their unique crystal structure and high magnetic energy density.

This allows them to produce strong magnetic fields even in small sizes, making them ideal for applications where space and weight are limited.

Common Applications of Neodymium Magnets

Because of their strength and reliability, neodymium magnets are widely used in:

Electric motors
Wind turbines
Magnetic mounting systems
Sensors and electronics
Automotive components
Industrial holding and clamping systems

They are also commonly used in round base magnets, magnetic assemblies and high-strength magnetic fixings.

Choosing the Right Neodymium Magnet

Choosing the correct magnet ensures reliable performance and long-term durability. When selecting a neodymium magnet, important factors to consider include:

Pull force required
Operating temperature
Magnet size and shape
Protective coating
Mounting method
